Elbow Insulation Cladding

Pre-Fabricated Metal Elbow Insulation Cover

Specification

Parameter	Details

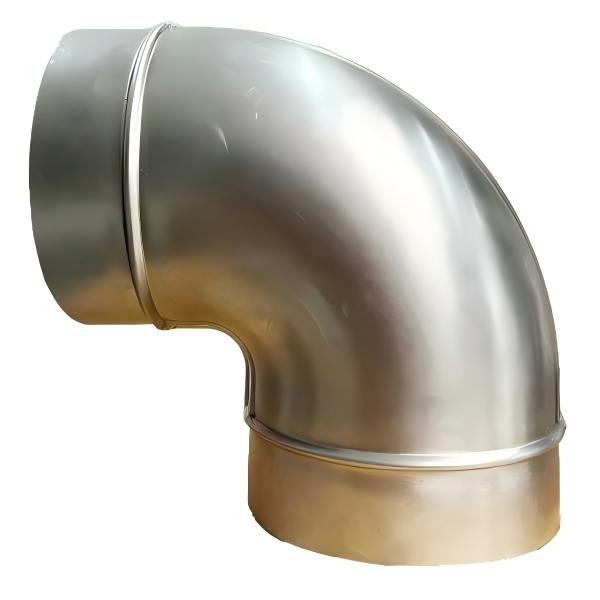

Product name	Pre‑formed metal elbow insulation cladding (two‑piece snap‑fit)
Material options	Aluminum (1060/3003), Galvanized steel (DX51D+Z), Stainless steel (304/316L)
Thickness	0.5 mm – 1.2 mm (custom up to 2.0 mm)
Pipe diameter range	DN50 (2") to DN1000 (40")
Elbow angles	45°, 90°, 180° (other angles on request)
Radius type	Long radius (1.5D) or short radius (1.0D)
Surface finish	Mill finish, brush (stainless), or coated (color optional)

Click directly to send a message via WhatsApp

Inquire

A^-A⁺

Description Inquire

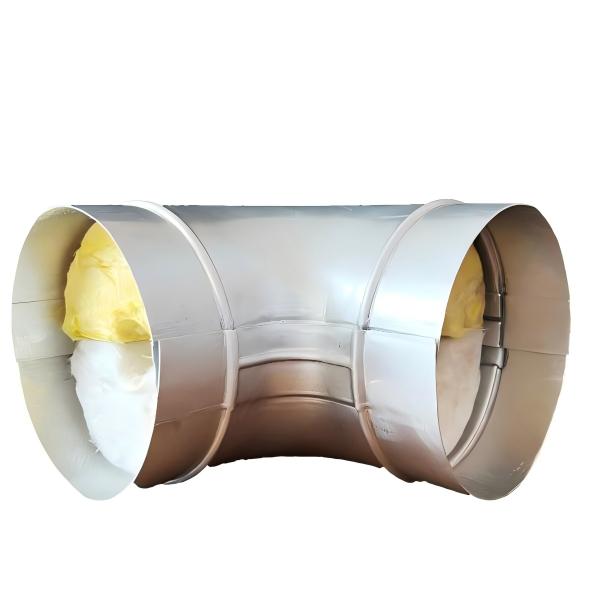

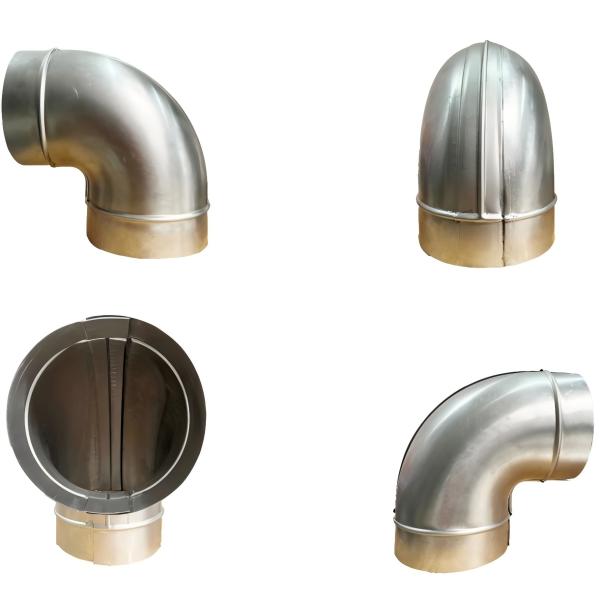

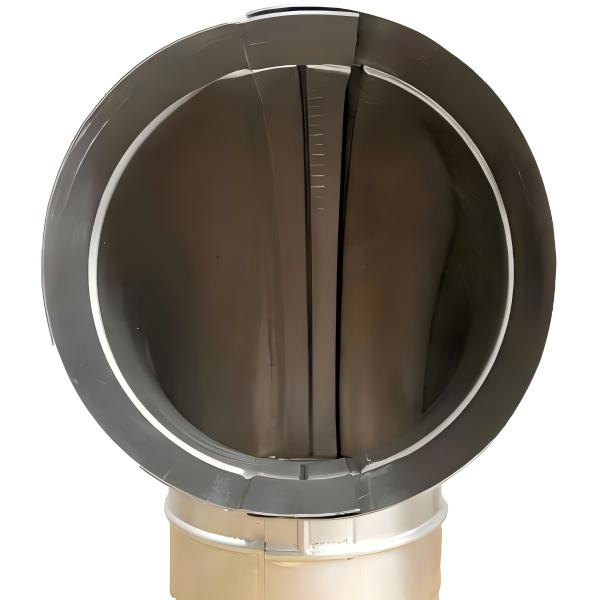

China Huatao Group presents a next-generation pre-fabricated metal elbow insulation cover. Unlike traditional multi-segmented field-fabricated covers, this product is factory‑formed into a two‑piece snap‑fit structure (upper and lower half). It serves as the outer protective shell for pipe elbow insulation, or as an inner insulation liner when filled with insulation material.

The cladding is manufactured from aluminum, galvanized iron, or stainless steel (304/316) to withstand harsh industrial environments. It is designed for rapid on‑site assembly without specialized skills, reducing installation time by over 90% compared to conventional segmented methods.

Key Applications：

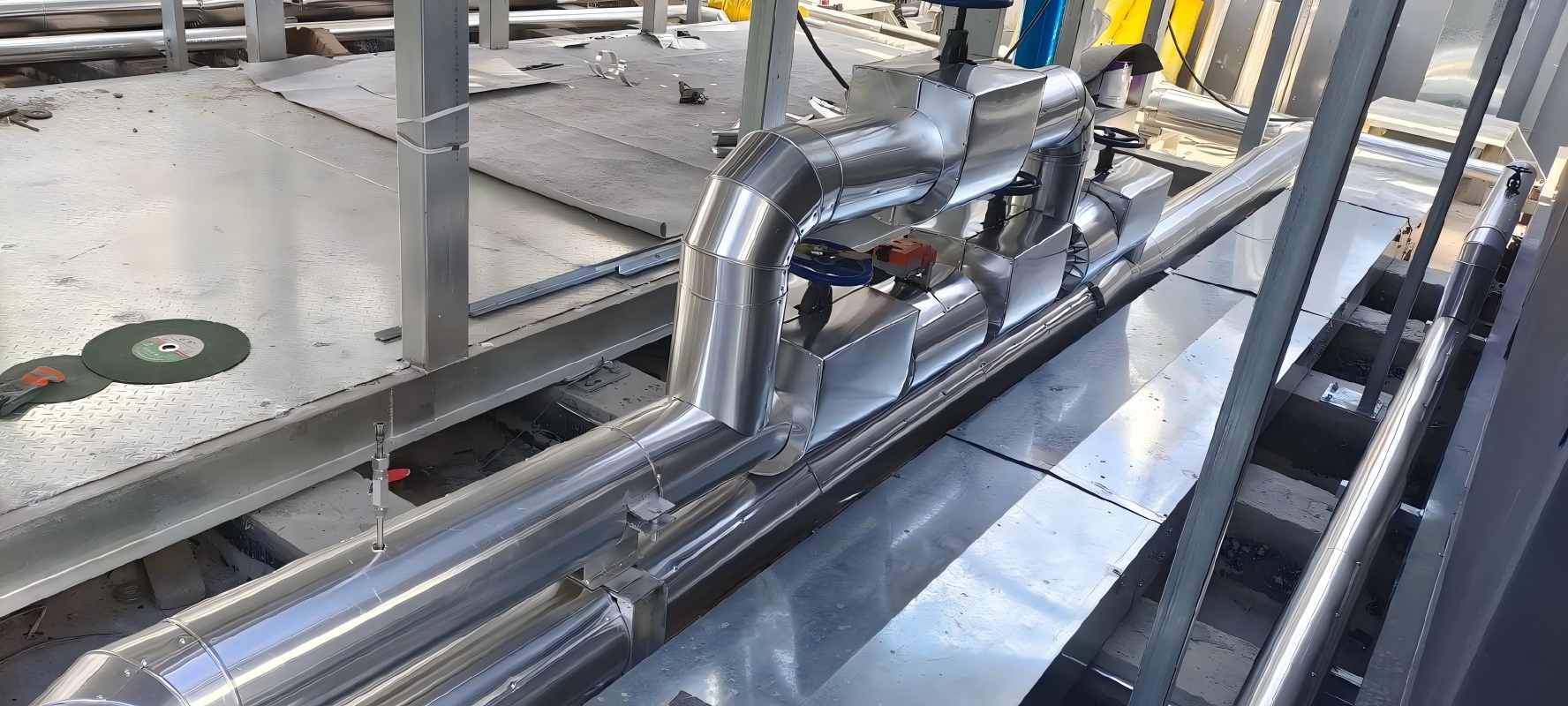

This product is widely used for thermal insulation protection of pipe elbows in:

Chemical & petrochemical plants (refineries, processing lines)
Marine & shipbuilding (engine room piping, deck lines)
Metallurgical industry (high-temperature gas/liquid pipelines)
Thermal power stations (steam, condensate, and heating networks)
HVAC & building services (chilled water, hot water pipe elbows)
Oil & gas transmission (above-ground and offshore platforms)

Typical pipe diameters range from DN50 to DN1000 (2″ to 40″), with standard elbow angles of 45°, 90°, and 180°.

Product Advantages

#	Advantage	Benefit
1	Two‑piece snap‑fit design	No on‑site cutting or shaping – simply place upper and lower halves and secure.
2	Minimal seam gaps	Reduces heat loss and cold bridging by >80% vs. multi‑segment covers.
3	Superior weatherproofing	Perfect sealing prevents rain, snow, and moisture ingress – ideal for outdoor and marine use.
4	High impact resistance	One‑piece monolithic structure withstands accidental stepping, tool drops, and light impacts without denting or deforming.
5	90% faster installation	A two‑person crew can install 30+ elbows per shift (compared to 3‑4 elbows with traditional segmentation).
6	Reusable	Remains undamaged after removal – can be reinstalled during pipe maintenance or modification, saving material costs by 50‑70%.
7	Low skill requirement	No experienced sheet‑metal workers needed – general laborers learn in 10 minutes.
8	Suitable for all insulation types	Works with rock wool, fiberglass, calcium silicate, aerogel, and foam glass.

Technical Specifications (Standard Range)

Parameter	Details
Product name	Pre‑formed metal elbow insulation cladding (two‑piece snap‑fit)
Material options	Aluminum (1060/3003), Galvanized steel (DX51D+Z), Stainless steel (304/316L)
Thickness	0.5 mm – 1.2 mm (custom up to 2.0 mm)
Pipe diameter range	DN50 (2") to DN1000 (40")
Elbow angles	45°, 90°, 180° (other angles on request)
Radius type	Long radius (1.5D) or short radius (1.0D)
Surface finish	Mill finish, brush (stainless), or coated (color optional)
Temperature range	-70°C to +600°C (depending on metal and insulation)
Fastening method	Self‑tapping screws, band straps, or pop rivets (pre‑drilled holes available)

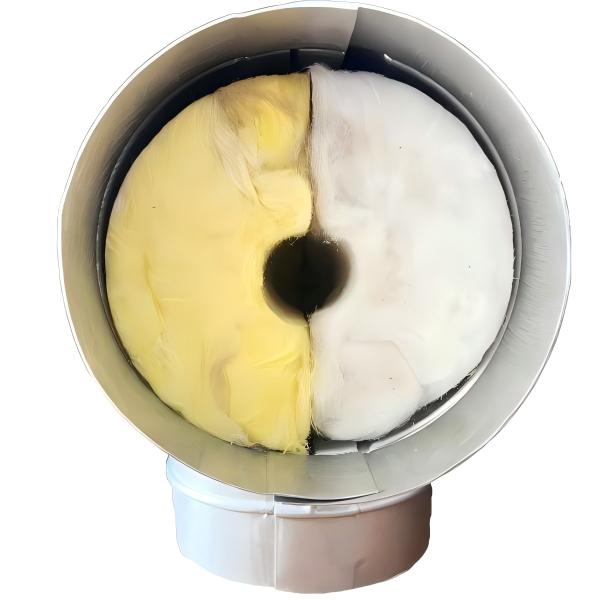

Inner liner version	Same two‑piece structure, pre‑filled with rock wool / fiberglass (for direct insulation use)

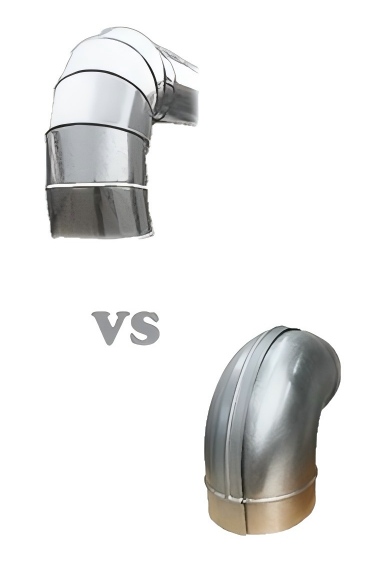

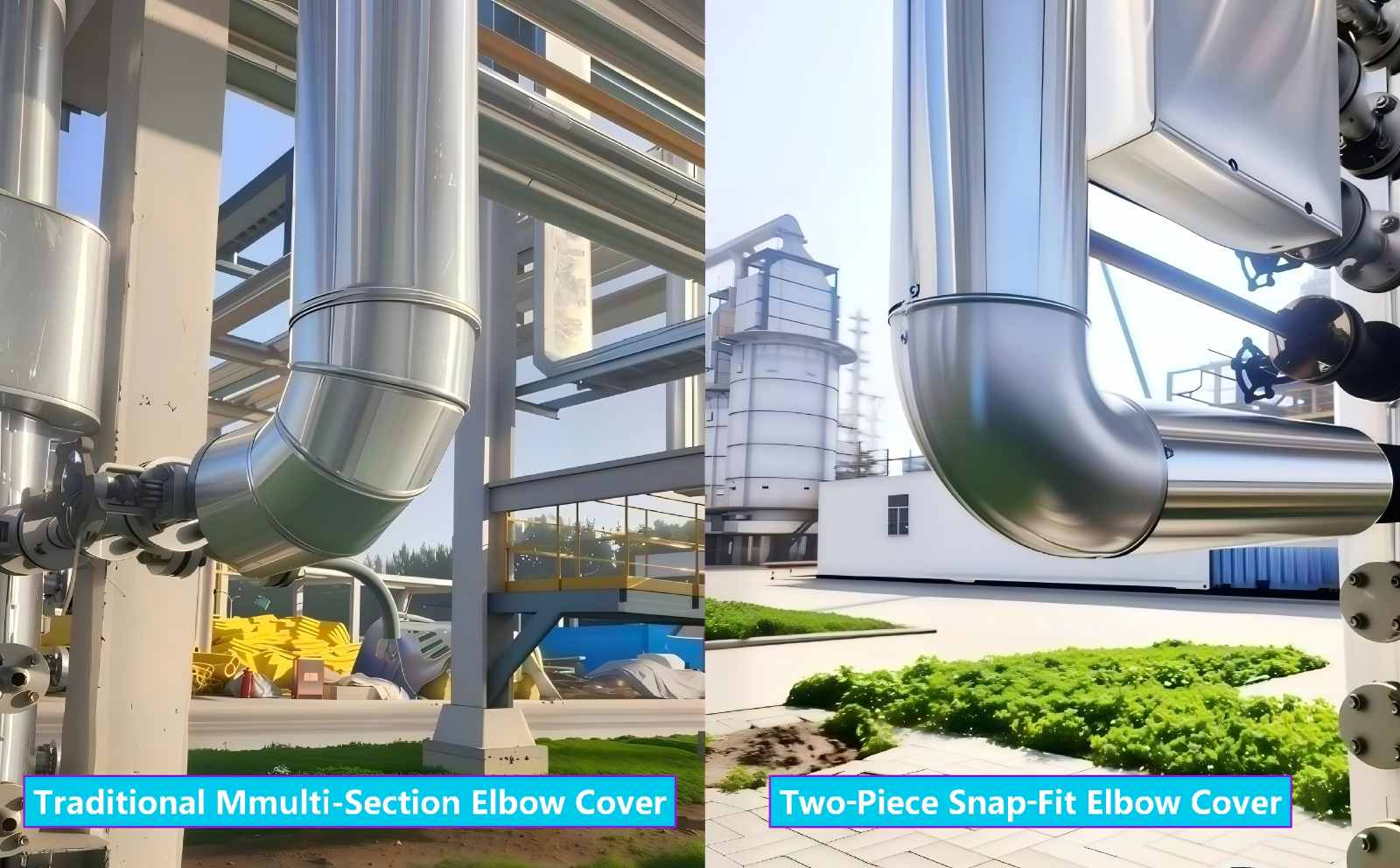

Product Comparison (vs. Traditional Segmented Field‑Fabricated Covers)

Feature	Traditional Segmented	Two‑Piece Snap‑Fit
Number of pieces	8‑12 per elbow	2
On‑site cutting/ welding	Extensive	None
Seam length	Long (multiple joints)	<10% of traditional
Installation time per elbow	45‑90 min (skilled)	4‑8 min (unskilled)
Water tightness	Poor (multiple leak paths)	Excellent (single central seam)
Reusability	Not possible	100% reusable
Typical labor cost	High	Very low

Why Industrial Buyers Choose This Product

Immediate emission reduction: Fewer open seams = less insulation degradation and lower energy loss.
Compliance ready: Helps meet ASHRAE 90.1, ISO 15665, and API 521 insulation integrity requirements.
Proven track record: Used by Sinopec, Shandong Haihua Group, PetroChina Refinery projects, and many thermal power plants (partial client list available on request).

Request for Quotation (RFQ) – Required Information

To provide an accurate quote, please send the following details:

Pipe elbow nominal diameter (e.g., DN200 / 8″)
Elbow angle (45°, 90°, or 180°)
Radius type (Long radius 1.5D or short radius 1.0D)
Center-to-end dimension (if not standard)
Outer insulation thickness (mm) – determines cladding inner diameter
Material & thickness (e.g., Aluminum 0.8 mm, SS304 0.6 mm)
Quantity (number of elbows)
Destination port (for freight calculation)

We accept OEM orders for non‑standard elbow radii, custom angles, and pre‑drilled fastening holes. Sample elbows can be produced within 10 working days after drawing approval.
